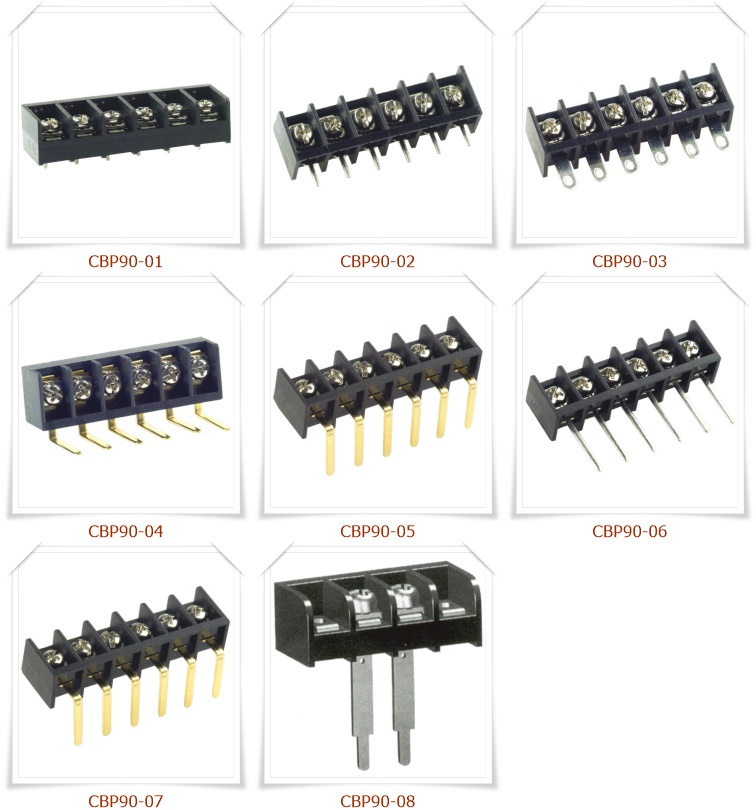

CBP90 后挡板栅栏式接线端子台 9.5mm pitch, 15A 300VAC

CBP90 后挡板栅栏式接线端子台，PCB端子台 9.5mm pitch, 15A 300VAC

1. Product Type: Barrier Strip

2. Barrier Style: Single Row, Tri-Barrier

3. Model Number: CBP90

4. Rating: 15A 300VAC

5. Terminal: Brass, 0.8t, Tin Plated

6. Body Material: Plastic NYLON 66, Black (UL 94V-0)

7. Screw: Steel, M3.5, Nickel Plated

8. Working Temperature: -40˚C to +105˚C

9. Insulation withstand Voltage: AC2000V at 1 min

10. Insulation resistance: 500MΩ or more at DC 500V

11. Wire Range: 22~12 AWG

12. Max. Torque Value: 12Kg/cm

13. Number of Poles: 2P~32P

14. Pitch: 9.5mm

15. Place of Origin: Taiwan

CBP90.pdf
